Heat Transfer Plates for Every Hydronic Radiant Floor

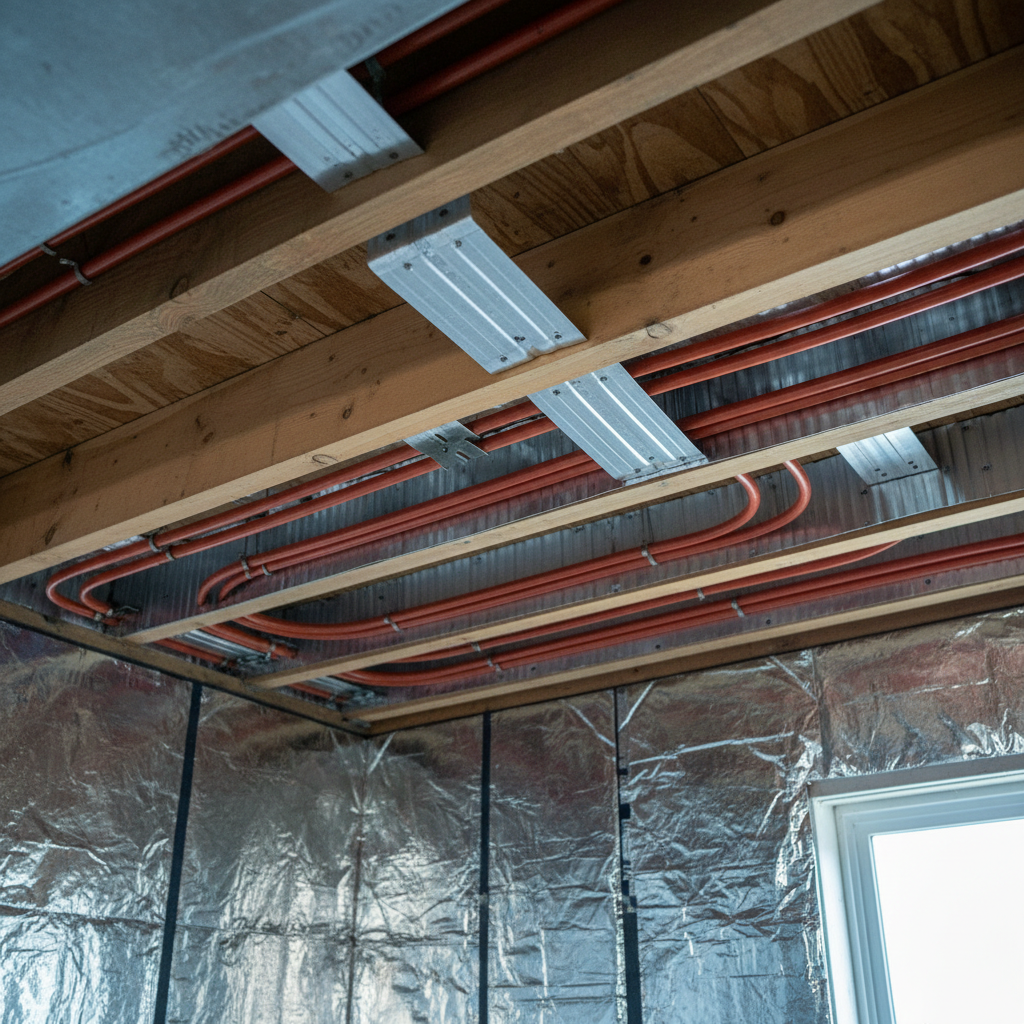

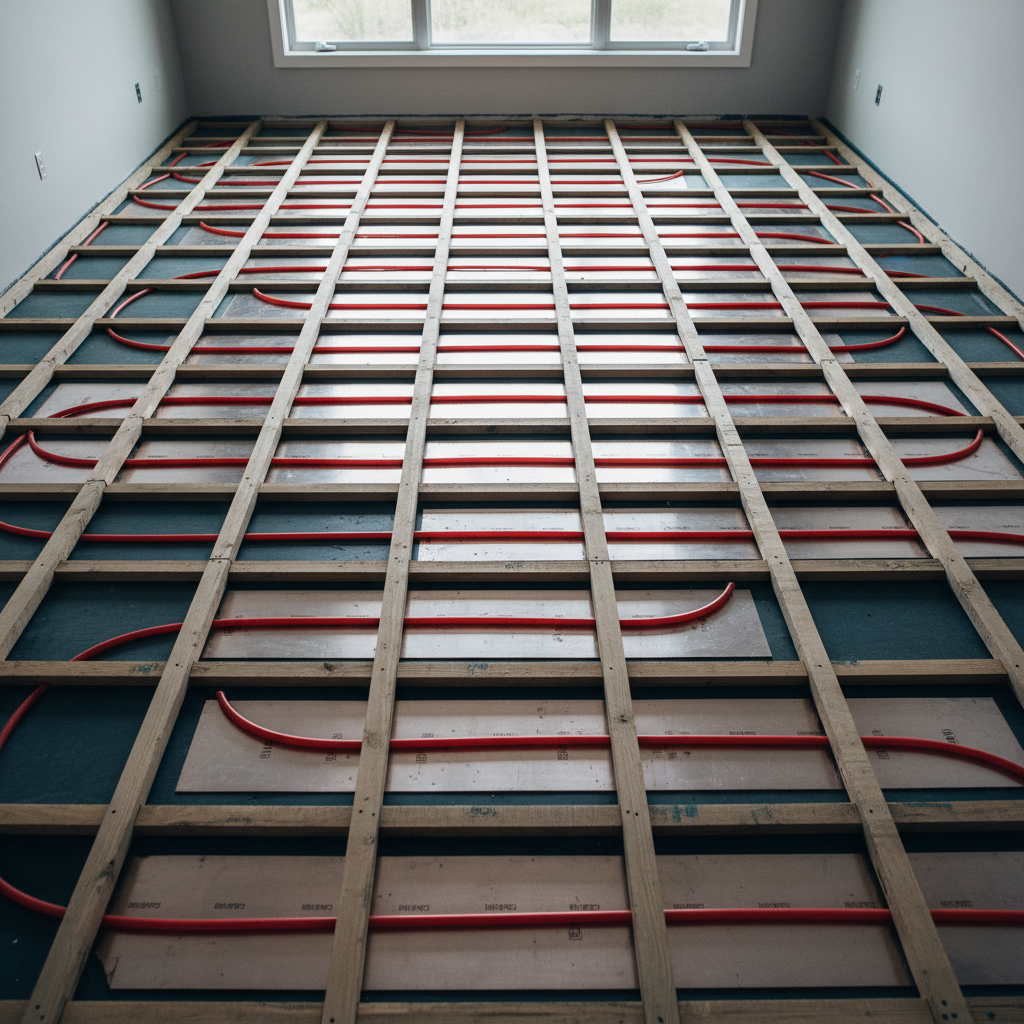

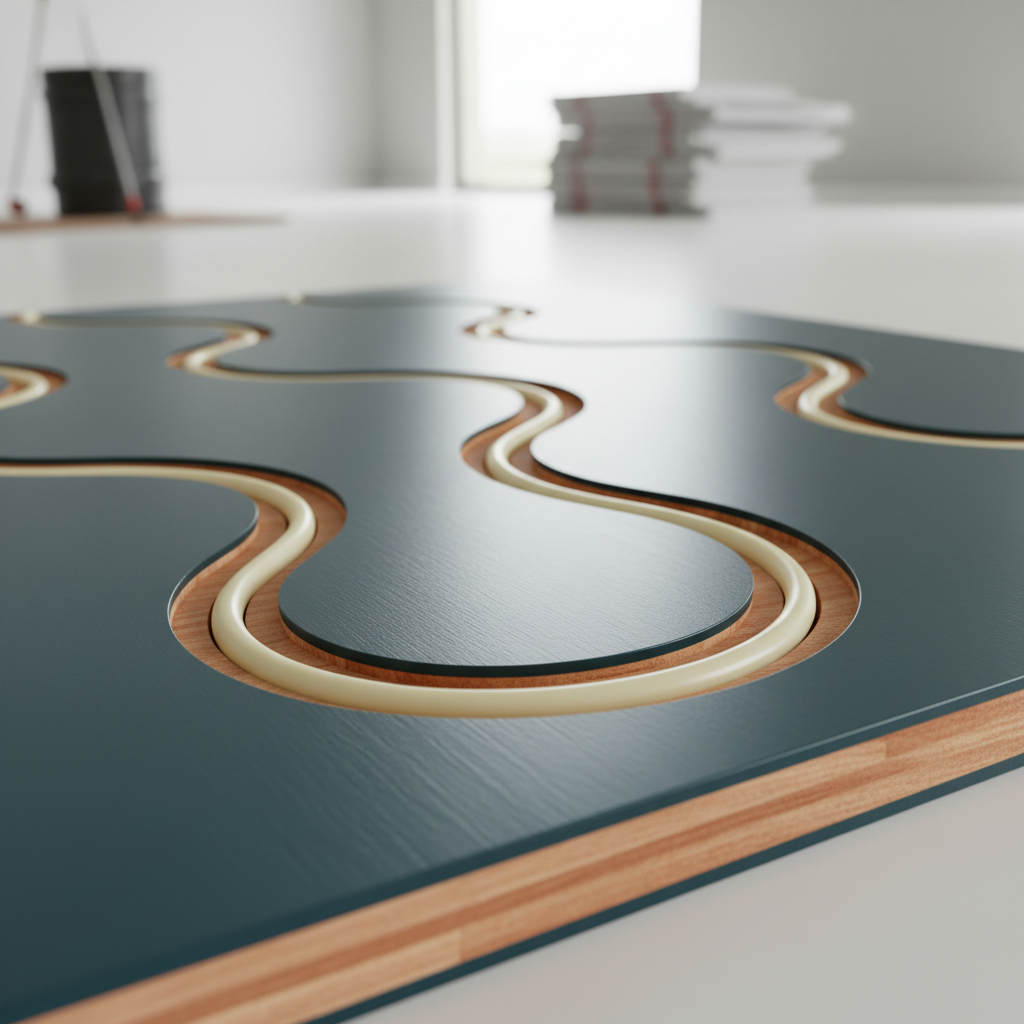

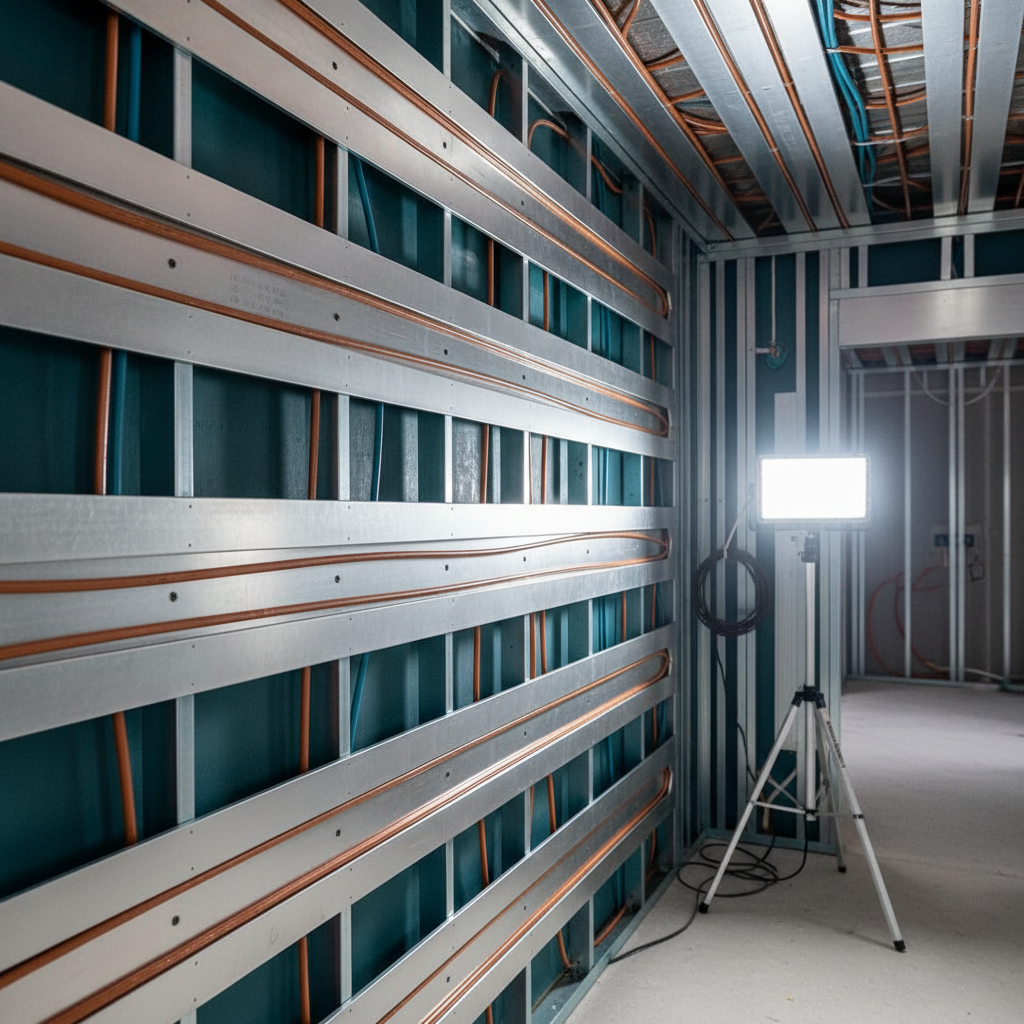

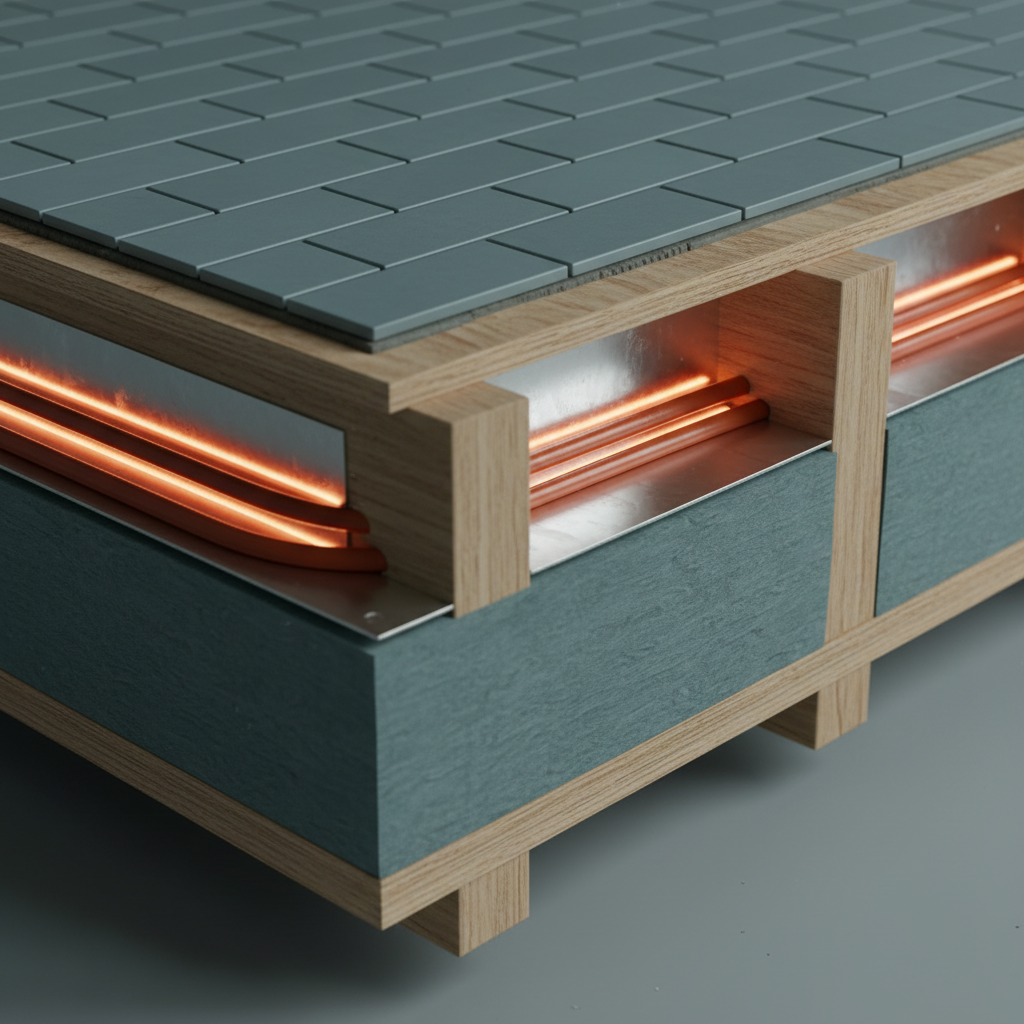

Heat transfer plates are aluminum plates, typically 4 to 6 inches wide and 2 to 4 feet long, with a groove that grips PEX tubing in a hydronic radiant heating system. The plate pulls heat out of the tube wall by conduction and spreads it across its own width, so the floor, wall or ceiling above is warmed across a broad band instead of a narrow stripe over the tube. They are fastened to the underside of a subfloor between joists, laid on top of a subfloor between sleepers, or built into grooved panels with an aluminum face.

No. The phrase is used for two different products. Plate heat exchangers use stacks of thin corrugated stainless steel plates, gasketed or brazed together, to pass heat between two separated fluids in boiler rooms, domestic hot water systems and process plants. This guide covers the other meaning: aluminum radiant heating plates that clip onto PEX tubing and conduct heat into a floor, wall or ceiling. If you need heat exchanger plates, you are looking for a different component.

Plateless staple-up works, but it moves heat mainly by heating the air in the joist bay, which then warms the subfloor. That path is slow and weak, so plateless systems commonly need high supply water temperatures to deliver modest output, and the floor responds slowly. Plates replace the air path with a metal conduction path, so the same floor typically delivers more heat at lower water temperature and reacts faster. For anything beyond a small, well insulated, lightly loaded room, plates are usually the difference between a floor that heats the house and one that only takes the chill off.

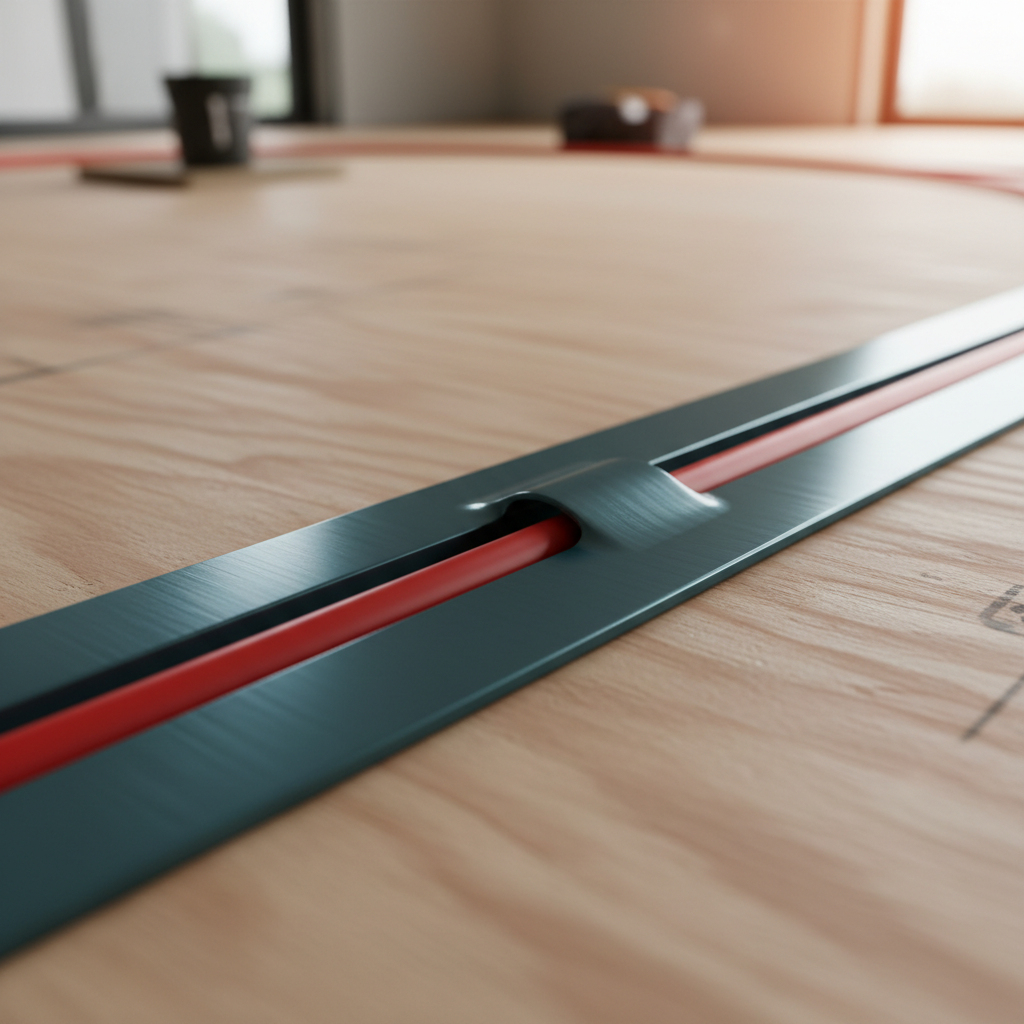

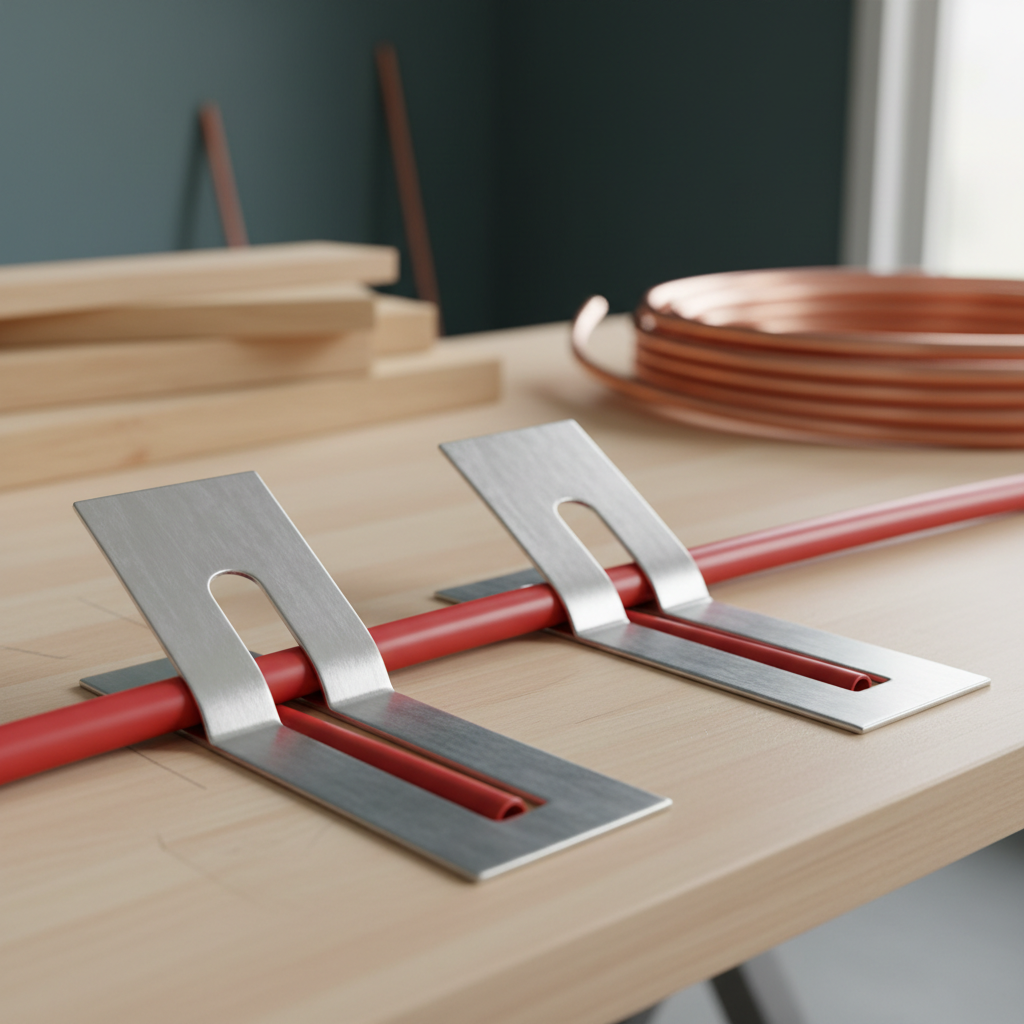

Extruded plates are thick aluminum with a formed omega or C-shaped groove that grips the tube tightly, giving the best conduction, the highest output and the lowest supply temperature, at the highest material cost. Thin stamped plates are light-gauge sheet with a pressed channel that the tube snaps into; they cost less, install quickly and still outperform plateless installs, but contact is looser and output per foot is typically lower. Use extruded plates where heat loss is high, floor coverings are resistive, or a low-temperature heat source is planned. Thin plates suit well insulated rooms with modest loads and a forgiving budget.

Plates are made for a specific tube diameter, most commonly 1/2 inch PEX, with 3/8 inch and 5/8 inch versions also produced. The groove must match the tube; a 1/2 inch tube in a 5/8 inch groove leaves an air gap that defeats the purpose. Plate widths are typically sized so that one plate per tube run lands on 8 inch or 12 inch on-center spacing, with 8 inch spacing used for higher loads and cold rooms and 12 inch spacing for lower loads. In joist bays, two runs per 16 inch bay is a common layout.

Output rises with plate coverage because more of the subfloor is in metal contact with a tube. Many designs aim for plates along most of the tube length, leaving gaps only at the loop ends, at obstructions and where the tube bends. The coverage percentage is a design decision that balances output against plate cost: a room with high heat loss or a thick floor covering typically wants near-continuous plates at 8 inch centers, while a low-load room may perform well with wider gaps. Ask the designer for the plate coverage assumed in the heat loss calculation.

It depends on the heat loss, the floor covering, the plate type, coverage and spacing, so there is no universal figure. As a pattern, plateless staple-up systems commonly run the hottest water, thin stamped plates lower, and extruded plates or aluminum-faced panels lower still. Above-subfloor plates that sit directly under the finish floor typically run cooler than joist-space plates that heat through the subfloor. Lower design water temperature is what makes a plated floor a good match for condensing boilers, heat pumps and solar thermal, which all deliver more efficiently at lower temperatures.

They are one of the main reasons those heat sources can run a wood-framed radiant floor at all. Air-to-water and ground-source heat pumps lose capacity and efficiency as the water they produce gets hotter, and condensing boilers only condense when return water is cool. Plates raise the floor's output at a given water temperature, which lets the designer lower the supply temperature to a range those sources handle well. Extruded plates at close spacing and high coverage give the most headroom; plateless staple-up usually gives too little.

Yes, with the floor covering treated as part of the design. Tile and stone conduct heat readily and suit radiant floors well. Hardwood works when the wood is dry, the surface temperature is kept within the flooring manufacturer's limits, and the water temperature is controlled; engineered products are often more tolerant than wide solid planks. Carpet and thick pad add resistance that raises the needed water temperature and cuts output, so a carpeted room typically wants extruded plates, tighter spacing, and a low-resistance pad. Always confirm the flooring manufacturer's limits for radiant use before finalizing the design.

The noise is PEX expanding and contracting as water temperature changes and rubbing against wood, staples or the plate edge. Poorly designed or loosely fastened plates can amplify it, while a good installation reduces it. What helps: a groove that fits the tube snugly, plates fastened flat with no buckling, a small gap between the ends of adjacent plates, tube that is pulled straight and fully seated rather than forced, no tube touching bare wood at joist penetrations, and gentle water temperature control so the system does not swing between cold and hot. Some installers add a thin tape or sleeve where tube passes through framing.

Plates conduct heat upward into the subfloor, but they also radiate downward into the joist bay, so insulation below them is not optional. The common approach is fiberglass or mineral wool batts, sometimes foil faced or with a reflective layer, installed below the plates with an air gap of a couple of inches between the plate and the insulation so heat moves upward rather than being trapped against a cold insulation surface. The R-value below the plates is typically specified to be well above the resistance of the floor assembly above, so that most of the heat goes up. Over an unheated crawlspace or garage, more insulation and careful air sealing pay for themselves.

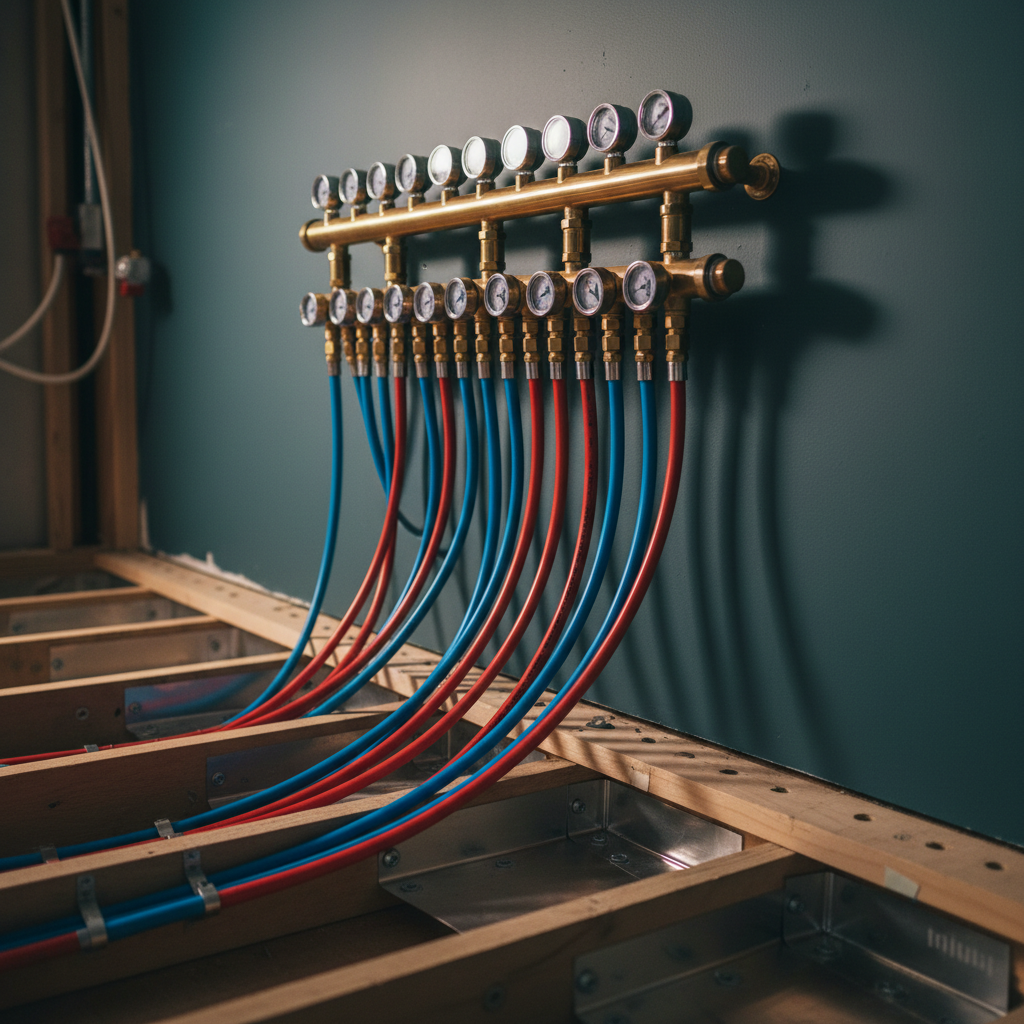

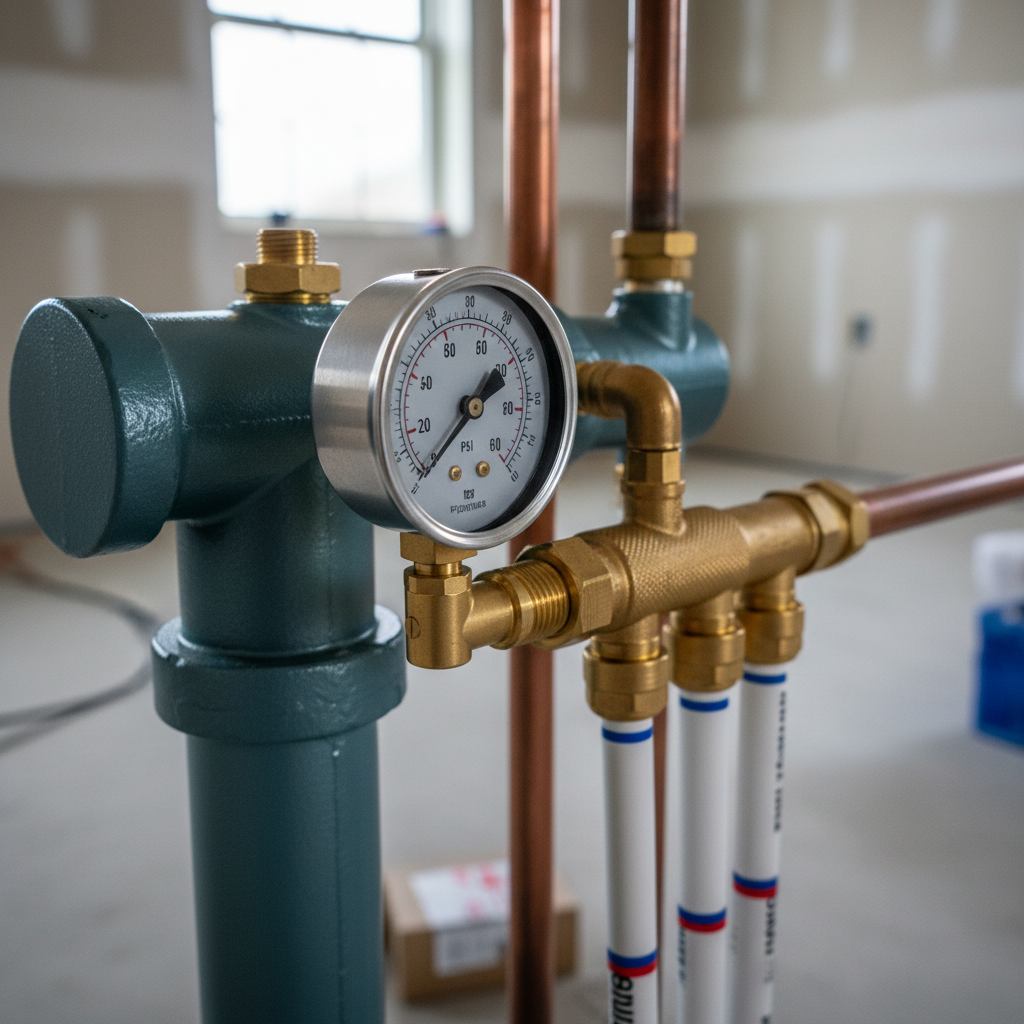

Before the floor or ceiling is closed up, each loop is pressurized, commonly with air or water at a pressure well above normal operating pressure, and held while every connection and the full tube run are checked, with the gauge rechecked after temperature has stabilized. Once filled, loops are purged of air, balanced at the manifold so each carries its design flow, and brought up to temperature in stages while surface temperatures and noise are checked. The plates themselves need no maintenance. Ongoing care is a periodic look at system pressure and manifold connections for leaks, and a listen for new ticking after seasonal cycles, which usually points to a loose plate or a tube rubbing on framing.
